Escape 23 Floorplan
Previous image
Next image

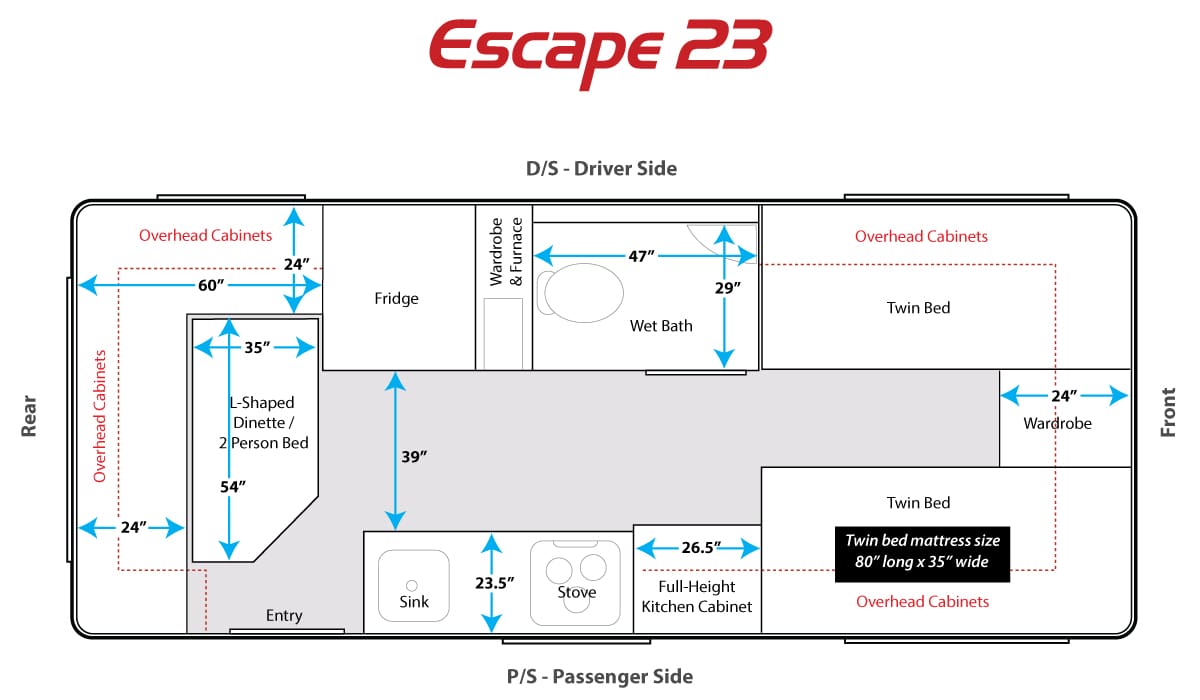

E23 with Twin Beds and the optional small round or standard triangular table
Previous image
Next image

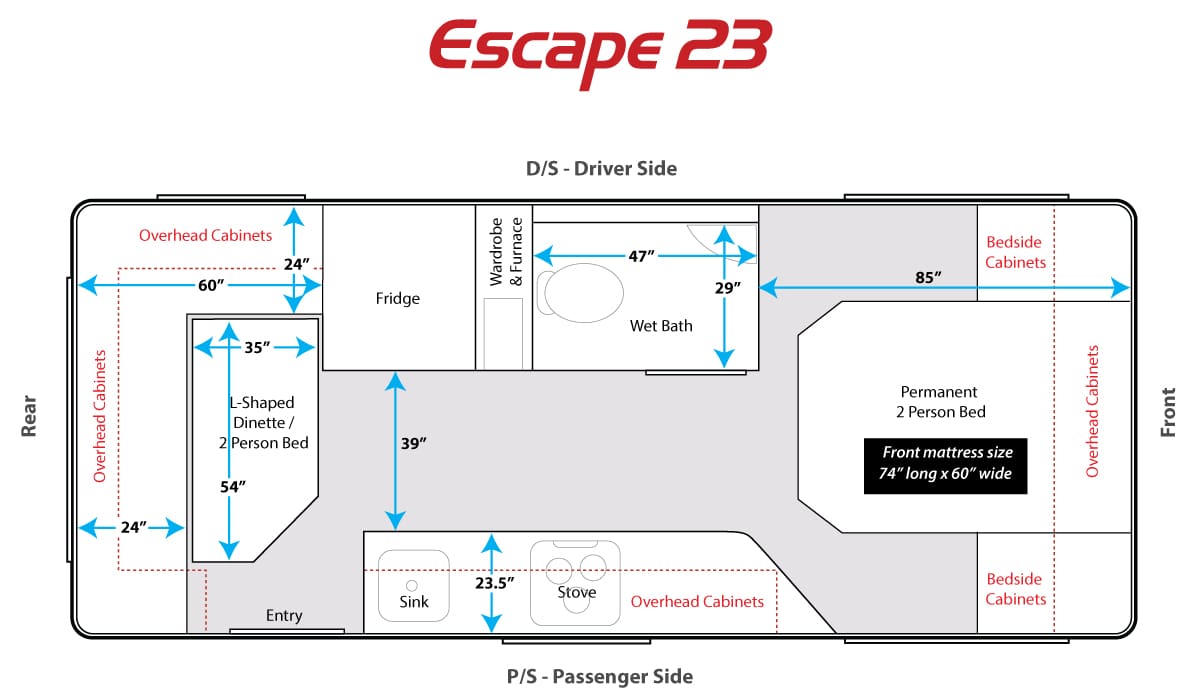

E23 with Walk-around Bed with optional small round or standard triangular table
Escape 23 Specifications
| Specifications | Value |
|---|---|
| Exterior Length | 24' 11" (Trailer tongue to back of bumper) |
| Exterior Height | 9' 6" (Top of AC) / 8' 8" (Top of Fiberglass) |
| Exterior Width | 8' |
| Interior Length | 19' 4" |
| Interior Height | 6' 5" |
| Interior Width | 7' 9" |
| Specifications | Value |
|---|---|
| Fresh Water Capacity | 42 Gallons |
| Black Water Capacity | 40 Gallons |
| Grey Water Capacity | 40 Gallons |
| Liquid Propane Gas Capacity | 2 x 20 lbs |
| Total Dry Weight | 4800 lbs |
| GVWR | 6000 lbs |

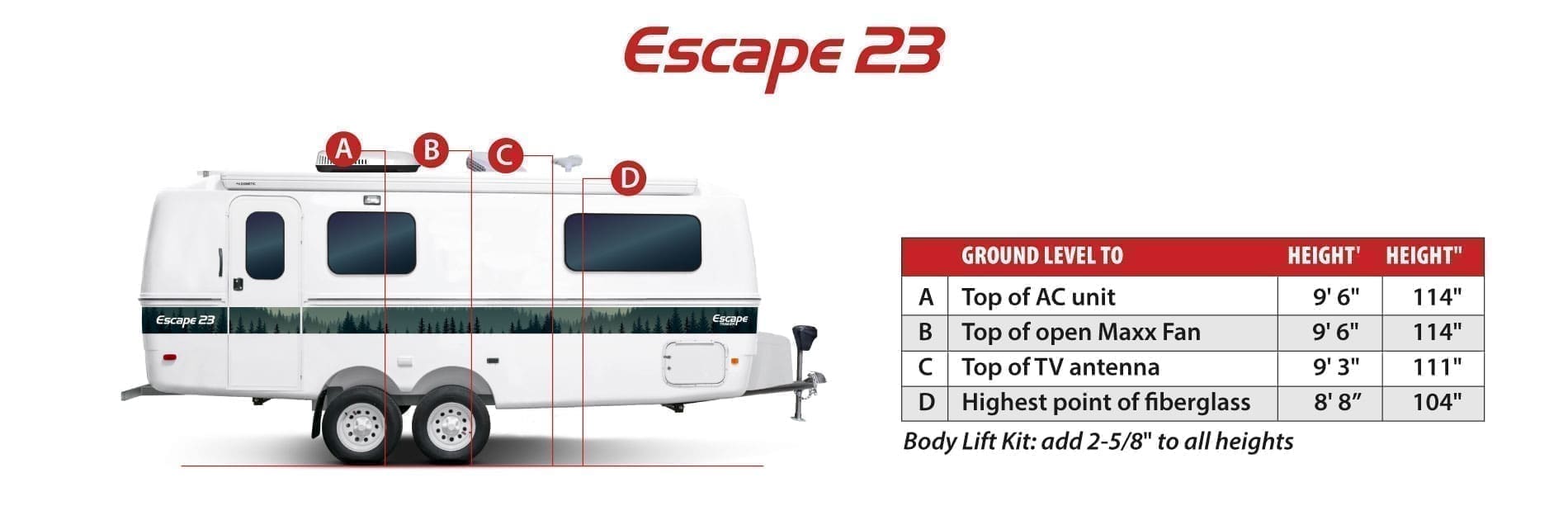

Escape 23 Height Specifications
Escape 23 Interior Dimensions
